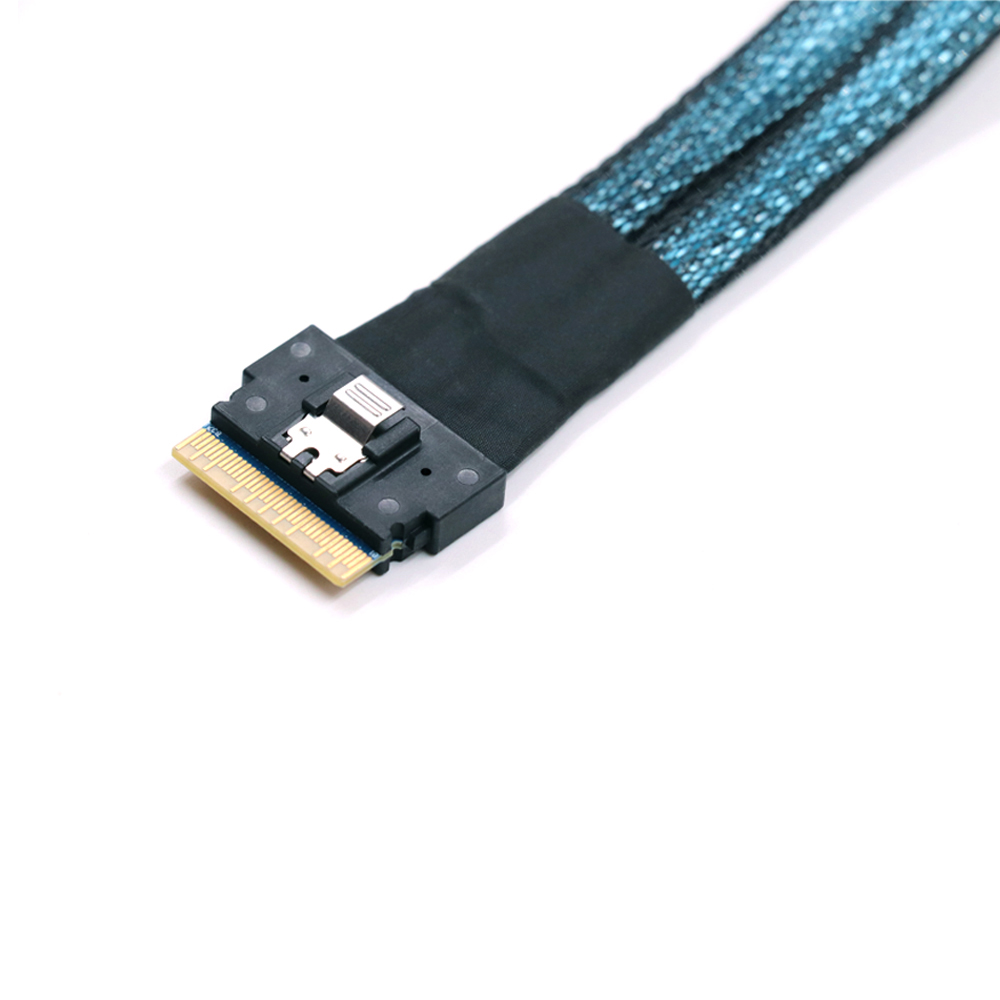

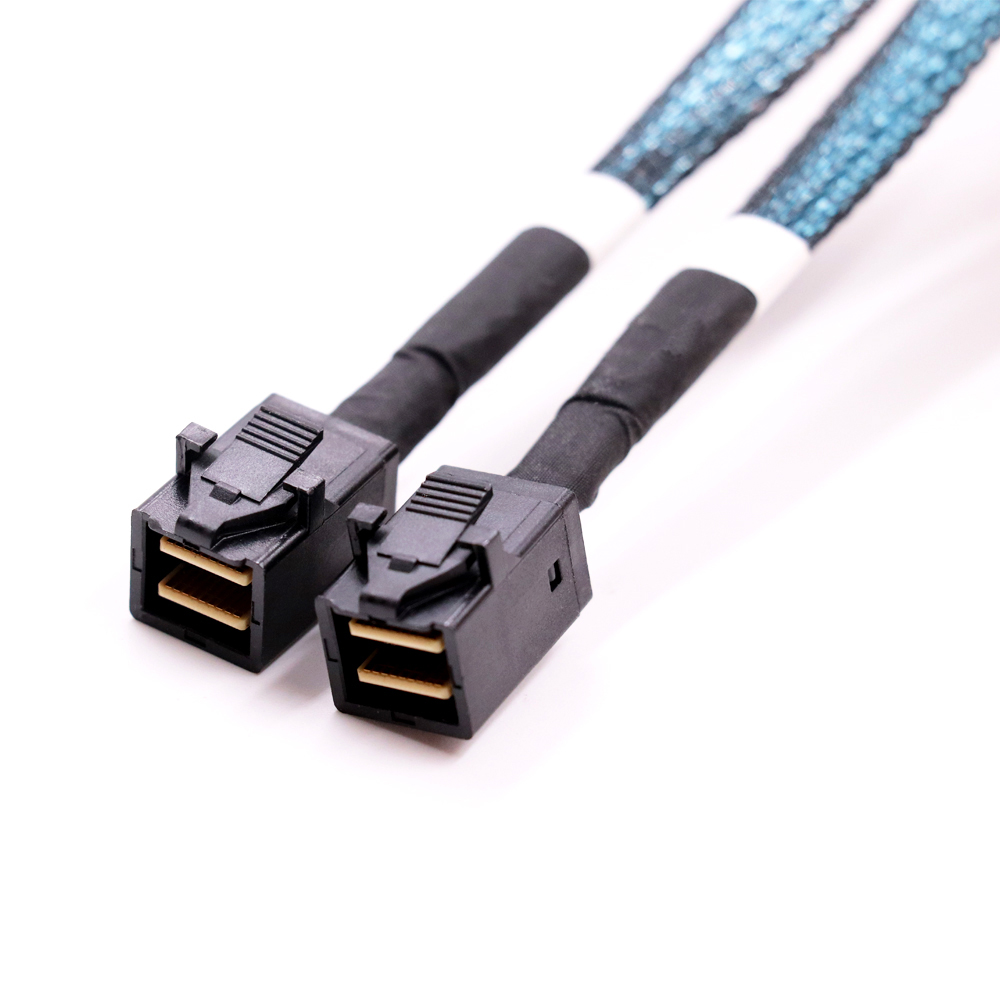

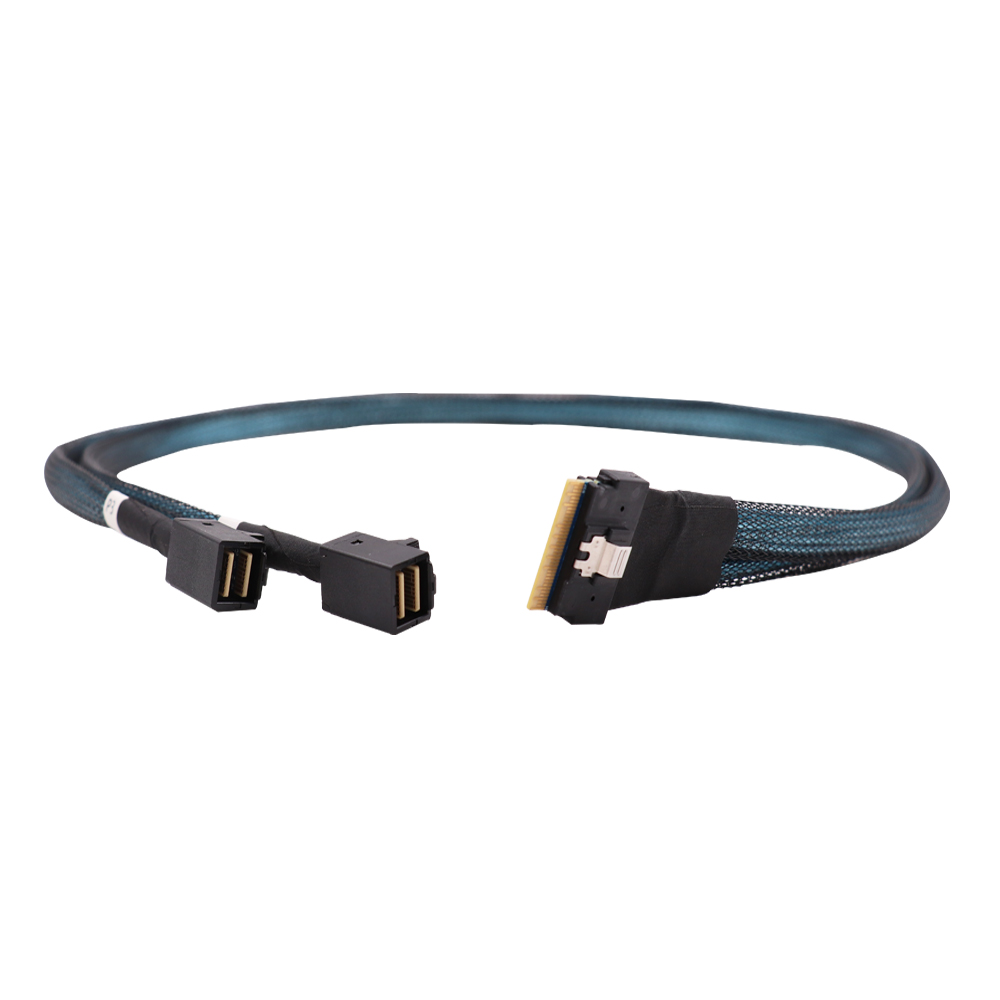

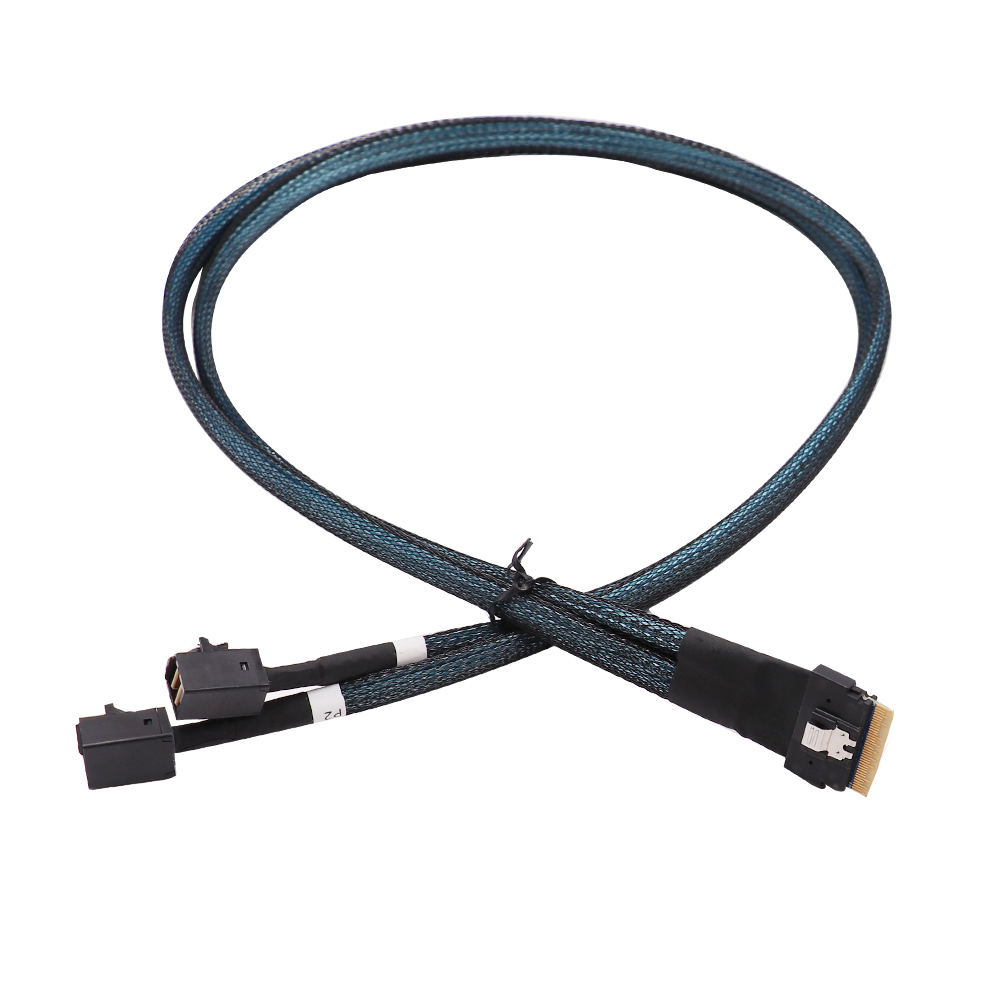

Slim SAS SFF-8654 8i to HD Mini SAS 36P 2*SFF-8643
Application field
1.Server 2.Data storage 3.Workstation
Features and advantages
1.Smaller size connectors and cables save equipment space 2.Provide 8-channel signal transmission according to industry standards 3.Data speed: each channel supports UPI 11.2GT/s, SAS4.0 24Gbps, OpenCAPI 25Gbps and PCIe4.0 16Gbps 4.Comply with SAS4.0 and SlimSAS SFF-8654 specifications
Mechanical behavior
1.Combining force: 55.5N max 2.Releasing force: 49N max 3.Rated durability period: at least 250 cycles
Electrical performance
1.Voltage: 30VDC per contact SlimSAS 8i plug: maximum 80mohm initial, maximum 20mohm after pressure test. 2.Dielectric withstand voltage: minimum 300 VDC, lasting 100 ms 3.Insulation resistance: the minimum value between adjacent pins is 10M¦¸
Signal integrity
1.Impedance of mating connector: 100 +/- 10% ohm 2.Common mode impedance: in line with SAS4.0 specifications 3.Insertion loss: in line with SAS4.0 specification, 4.Maximum crosstalk: in line with SAS4.0 specifications
Environmental compliance
Comply with RoHS2.0 standard China RoHS: Yes Reach SVHC: Yes |
