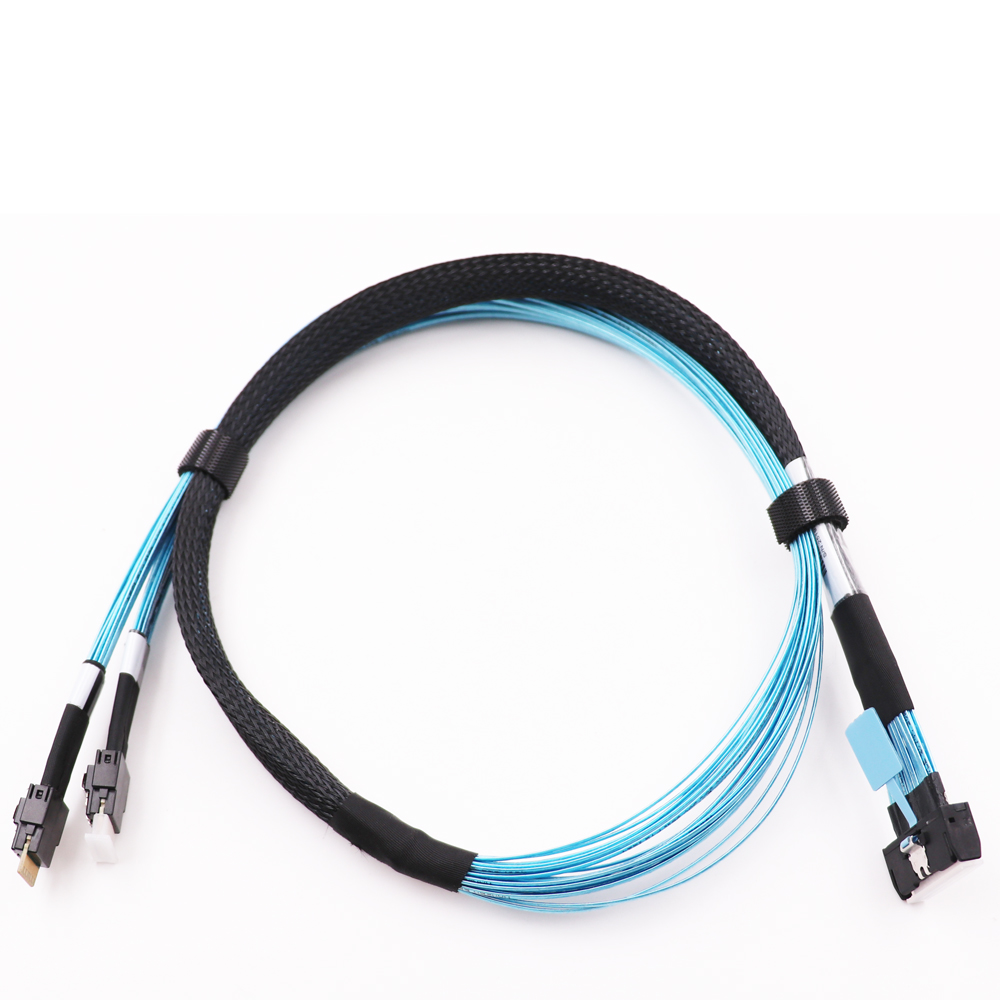

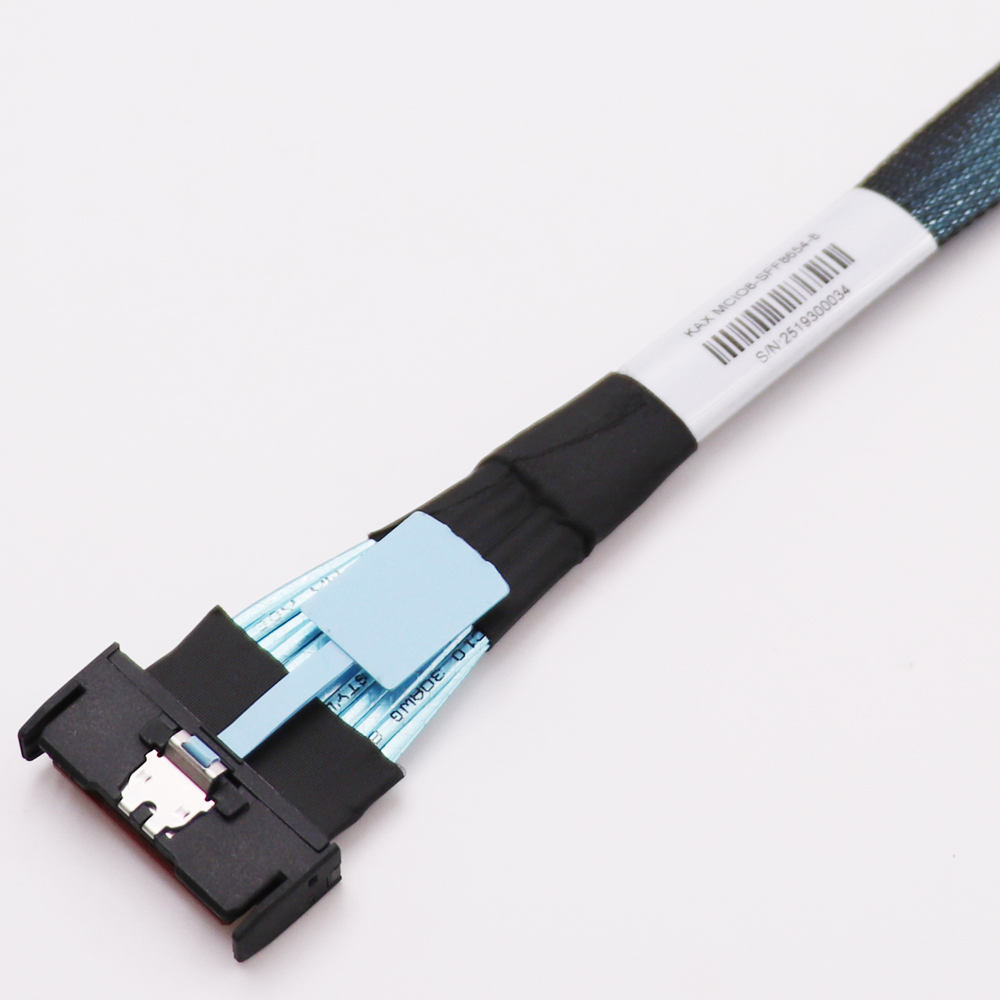

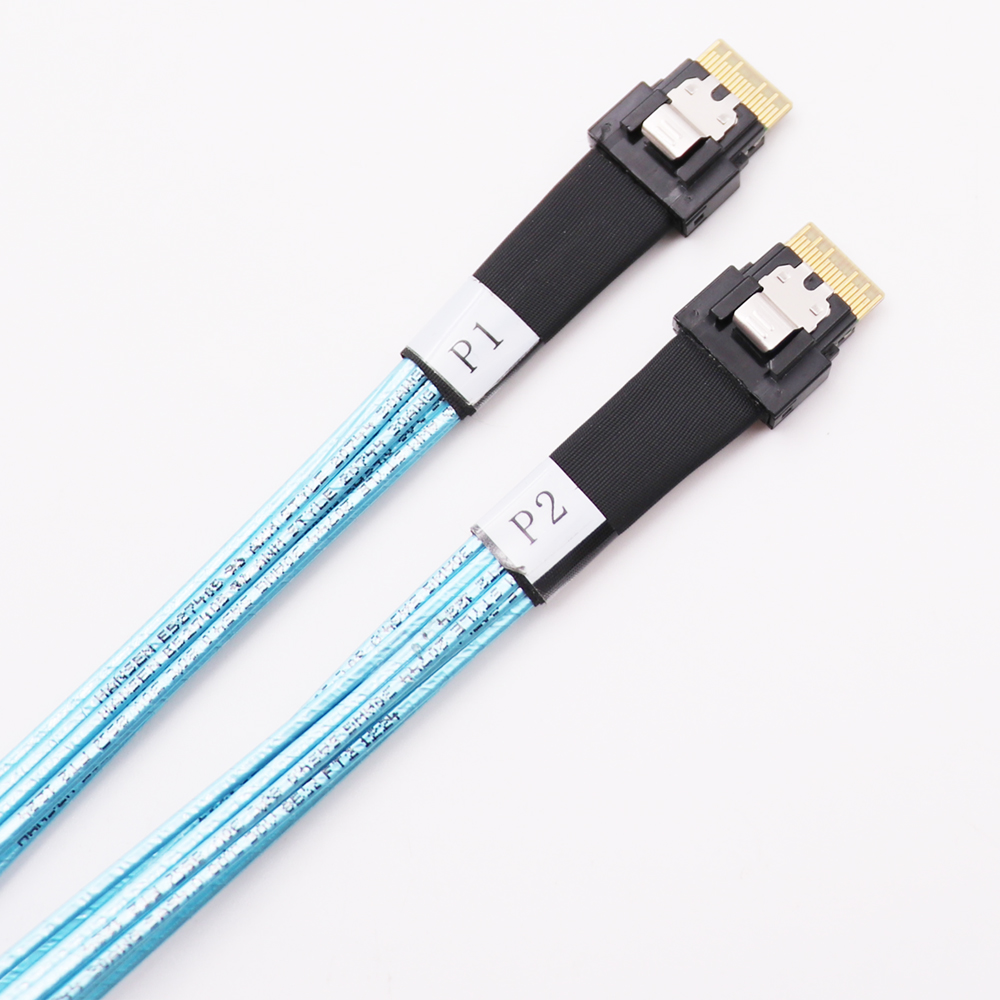

MCIO 8X Stright TO 2* Slim SAS 4i Cable
Mini Cool Edge IO is a flexible, robust, and cost effective connector and cable assembly solution that help server and networking equipment design flexibility, reduce overall space, and extend the reach for high data rate signals. The solution can be used in application of 24Gbps SAS4.0 signal, 32GT/s PCIe5.0 signal.
Features
1. Compact connector design with 0.6mm pitch saves space on end devices and supports cable-to-board and card-to-board applications
2. 1.57mm PCB card thickness compatible with PCIe riser card
3. Straight cable plug
4. Supports 85 ohm impedance application
5. Supports signaling rates up to PCIe5.0 32GT/s
6. 30AWG cable
Applications
1. Data center & Networking Equipment 2. Servers/Storage Devices 3. High Performance Computing (HPC) 4. Switches/Routers 5. Wireless Base Stations and Radios
Specifications
PCIe Gen5 and PCIe Gen6
Mechanical Performance
1. Mating Force: 55.5N maximum
2. Unmating Force: 49N maximum
3. Rated durability cycles: 250 cycles minimum
Electrical Performance
1. Voltage: 30VAC per contact
2. Current: 0.5A per contact
3. Contact resistance: 20mohm max. initial, 20mohm maximum change after stress test
4. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
5. Insulation Resistance: 10 M¦¸ minimum between adjacent pins
Signal Integrity
1. Mated Connector Impedance: 85+/-10% ohm @25ps RT
2. SCD21: meet SAS4.0 and PCIe4.0
3. FEXT: meet SAS4.0 and PCIe4.0
4. NEXT: meet SAS4.0 and PCIe4.0
5. Insertion loss: meet SAS4.0 and PCIe4.0
Product Environmental Compliance
RoHS2.0: Compliant
China RoHS: Yes
REACH SVHC: Yes |
