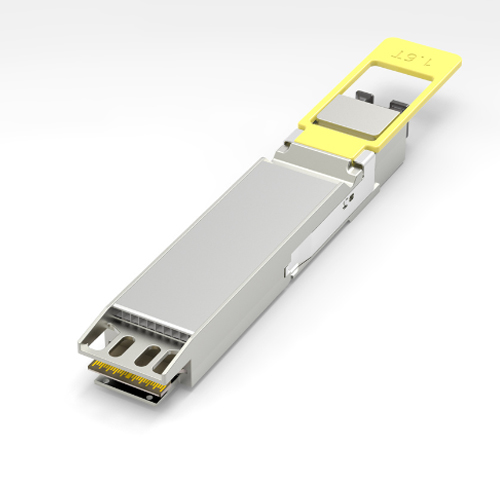

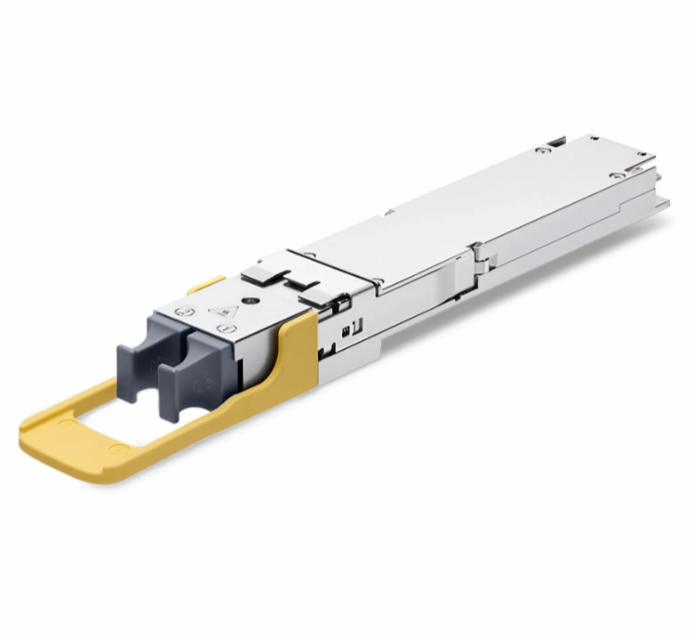

1.6T 2xDR4/DR8 OSFP PAM4 1310nm 500m Dual MPO-12/APC SMF Optical Module
Product Name: 1.6T 2xDR4/DR8 OSFP PAM4 1310nm 500m Dual MPO-12/APC SMF Optical Module
P/N: W-MMS4A00
Download Datasheet
Description

This OSFP Optical Transceiver is an InfiniBand 1.6T 2x 800Gb/s Twin-port OSFP, 2xDR4/DR8 single mode, parallel, 8-channel transceiver using two, 2-fiber, 4-channel MPO-12/APC optical connectors at 800Gb/s each. The parallel single mode, short reach 8-channel (2xDR4/DR8), uses 200G-PAM4 modulation and has a maximum fiber reach of 500-meters using 8 single mode fibers. It is qualified for use in InfiniBand XDR end-to-end systems.
It is the ideal solution for supercomputing and HPC industries, seamlessly integrating into computing and storage infrastructure to
ensure efficient high-performance interconnectivity. The flat-top (OSFP-RHS) version is suitable for liquid-cooled switches.


Product Features

  • 212.5Gbps/ln or 224Gbps/ln by PAM4 modulation
  • 8¡Á200G PAM4 Sipho-based transmitter
  • <2dB TDECQ   >3.5dB ER
  • Built-in 5nm DSP chip
  • Flip-chip Packaging Form for Optoelectronic Chip
  • Maximum link length of 500m on SMF fiber
  • Dual MPO-12 APC connector receptacle optical interface compliant
  • Hot-pluggable OSFP1600 form factor
