Description

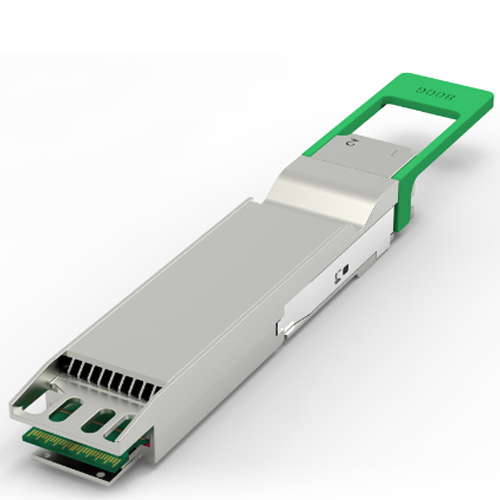

The 800GBASE 2x FR4 OSFP optical transceiver module is designed for 800GBASE Ethernet throughput up to 2km link lengths over OS2 single-mode fiber (SMF) via dual duplex LC/UPC connectors. This transceiver is compliant with IEEE 802.3ck, IEEE 802.3cu, OSFP MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.
The twin-port OSFP closed finned top transceiver is used in Ethernet air-cooled switches. Featured with low latency, low power, and reliability,it can link upward in spine-leaf architectures for switch-to-switch applications, downward for top-of-rack switch links to Ethernet network adapters, and/or to BlueField-3 DPUs in compute servers and storage subsystems. It is the ideal solution for HPC computing, AI, and cloud data centers.Product Features- Hot-pluggable QSFP-DD Type 2A form factor
- Supports 850Gb/s aggregate bit rate
- Power dissipation <16W
- Commercial case temperature range of 0¡ãC to 70¡ãC
- Single 3.3V power supply
- Maximum link length of 2km on Single Mode Fiber (SMF)
- Aligned with IEEE 802.3cu
- 8x100G PAM4 EML-based CWDM transmitter
- 8x100G PAM4 retimed 800GAUI-8 electrical interface
- Dual CS receptacles
- I2C management interface
- RoHS compliant
|
