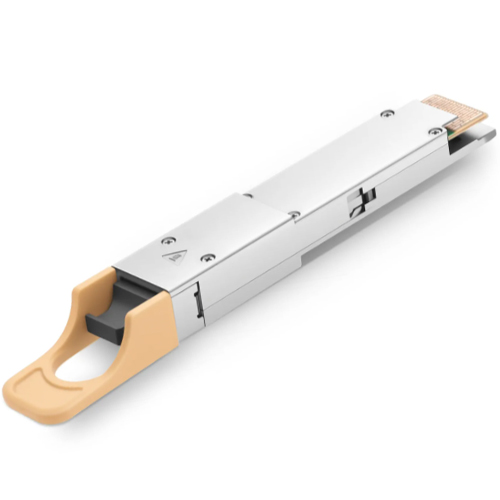

This QSFP112 optical transceiver is an 400Gb/s single-port QSFP112, SR4 multimode parallel transceiver using a single, 4-channel MPO-12/APC optical connector. The short reach 4-channel (SR4) design uses 100G-PAM4 modulation and
has a maximum fiber reach of 50-meters using OM4 multi-mode fibers.
The QSFP112 transceiver can be used in QSFP112/QDD switches as well as in ethernet adapters. Featured with low latency,
low power, and reliability, it can link upward in spine-leaf architectures to 800G Ethernet switches. It can also interconnect
with 400G QSFP-DD or OSFP SR4 to meet diverse application scenarios. When connected to a 1:2 splitter fiber cable,
there are only 2 channels on the split end and only 2-channels in the 400G transceiver will be activated, automatically
producing 200G speeds and reducing power.
It is an ideal solution for supercomputing, seamlessly integrating into computing and storage infrastructure to ensure
efficient high-performance interconnection.
Product Features
- Support 100GBASE per lane in multimode fiber
- Hot-pluggable QSFP112 Type 1 form factor
- Data rate up to 425Gbps (4x 106.25 Gbps)
- Reach up to 100m on MMF (OM4)
- 850nm VCSEL laser and PIN receiver
- High speed I/O electrical interface (400GAUI-4)
- Single MPO-12 receptacle
- Operating case temperature: 0 to +70¡ãC
- Compliant to RoHS 6/6
- Compliant to 400G QSFP112 MSA and CMIS5.2
