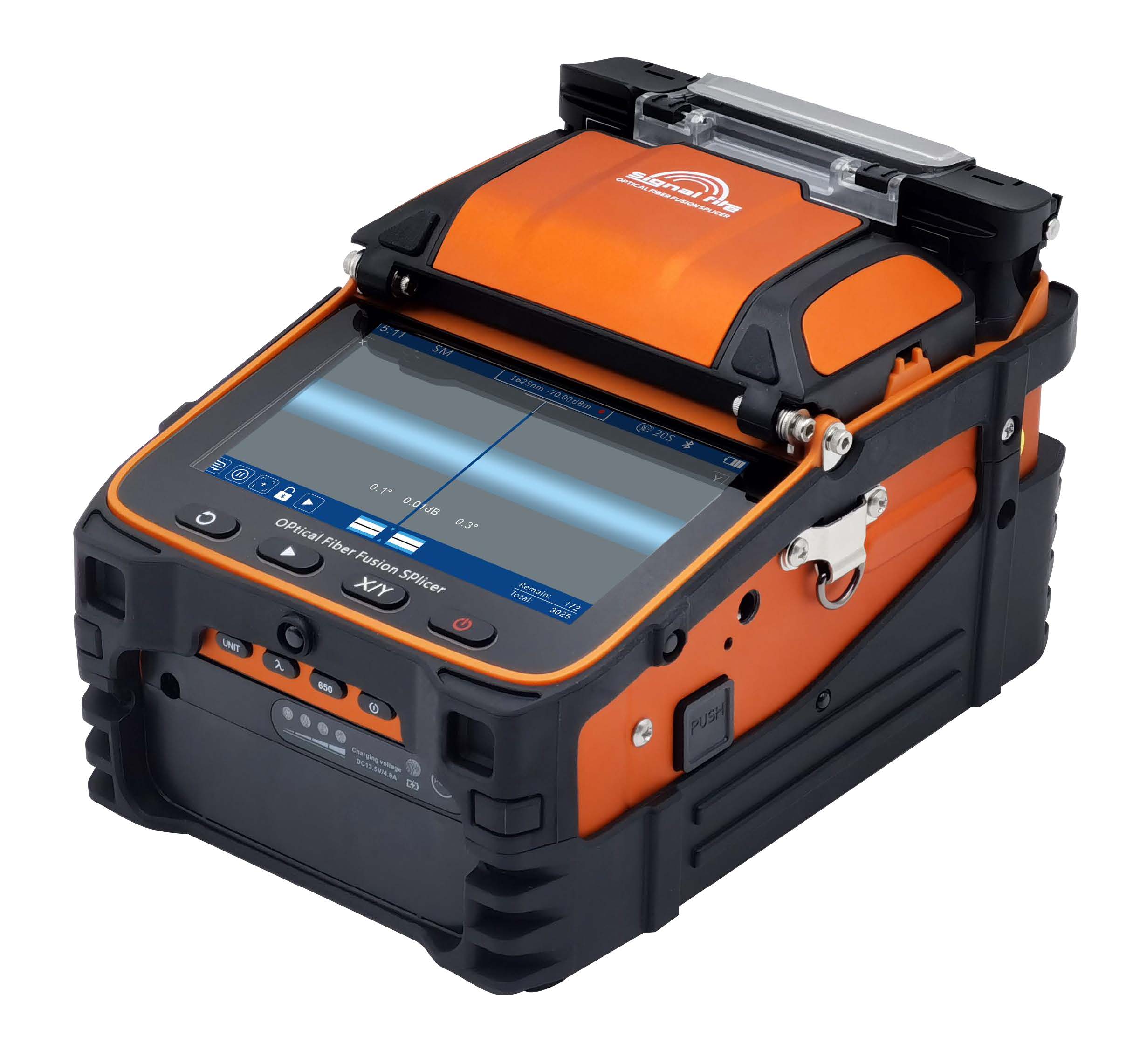

AI-9 is a fully automatic, mainline fiber optical fusion splicer with six motors and fiber core alignment, capable of weldinglong-distance fiber optic lines. Also within VFL and OPM function. Adopting industrial grade CPU, with fast running speed,
5-second rapid fusion welding, 15-second rapid heating, 5-inch high-resolution LCD screen, 300x magnification.The work efficiency
is increased by 50% compared to ordinary welding machines; Largecapacity lithium battery can be heated by fusion about 260 cores,
outstanding performance in harsh environments such as high altitudes, deserts, and extreme cold.
Applications:
LAN, WAN and Metro Networks
FTTH project & FTTX Deployments
CATV System
GPON, EPON
Fiber Optic Test Equipment
Data-base Transmit Broadband Net

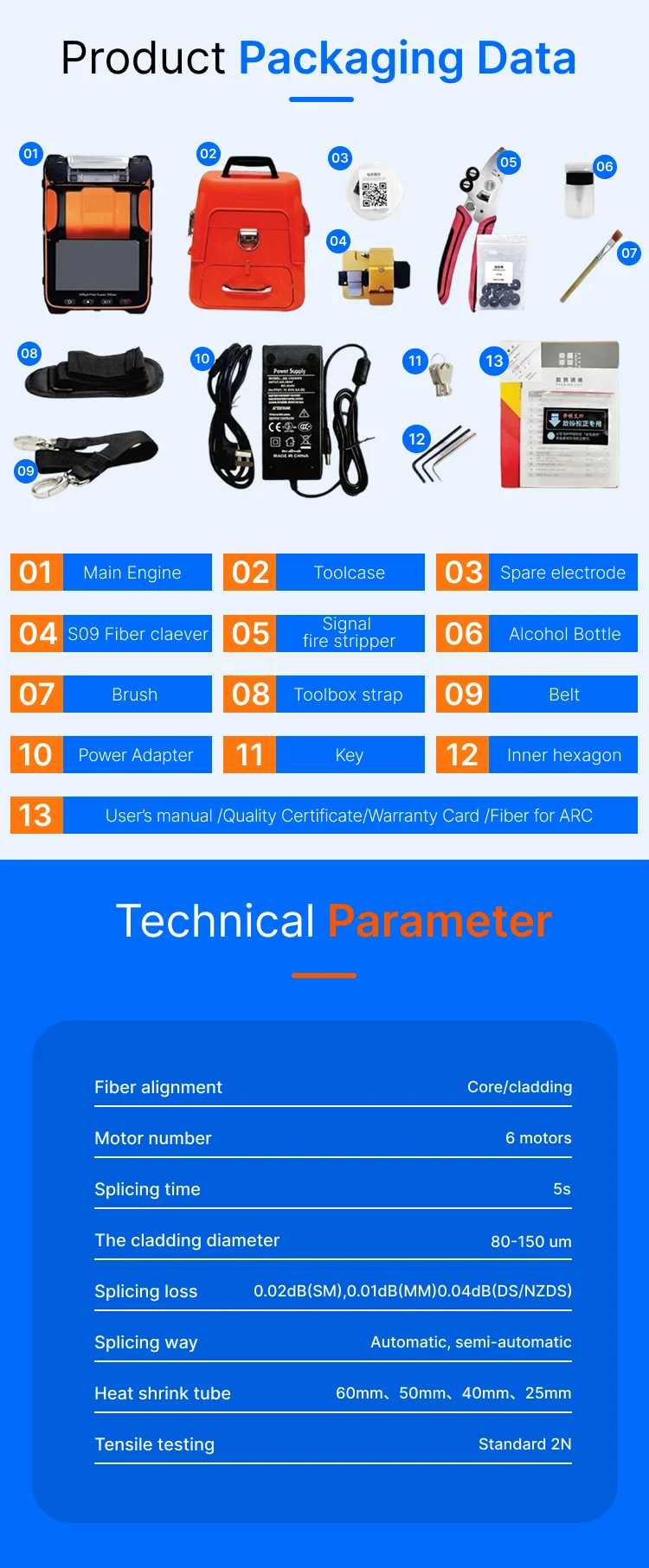

Product Parameters:
| Fiber Optic Fusion Splicer | | 8s | | 18s | | Automatic heating(Preheating) | | Six motors Auto focus | | Single-mode fiber (SMF/G.652), multimode fiber (MMF/G.651), dispersion-shifted fiber(DSF/G.653)non-zero dispersion-shifted
fiber(NZ-DSF/G.655), and bend-insensitive fber (BlF/G.657); suitablefor splicing bare fiber, pigtail, drop fiber, patch cord, and
invisible fiber. | | 0.02dB(SM)¡¢0.01dB(MM) 0.04dB(DS/NZDS) | | Real-time control and calibration of fusion ARC | | Better than 60DB | | Cladding Diameter:80-150um Coating Diameter: 100-1000um | | Coating less than 250um: 8-16mm Coating less than 250-1000um:16mm | | easy for night operation | | Standard 2N | | 3 in 1 fiber holder, SM, MM, bare fiber, pigtail, Drop cable , multi fiber cable | | 320x (X or Y axis single display), 160x (x and Y axis dual display) | | 5 inch TFT color display | | Normal / high precision splicing | | Synchronize to the phone, the server to cloud storage unlimited | | 5200mAh high-capacity lithium battery, charging time ¡Ü 3.0 hours,
continuous splicing and heating about 160 times | | Input AC100-240V 50/60HZ,output DC13.5V/4.8A, the current power mode can be identifed,real-time detection of battery power | | Temperature -15~+50 ¡æ, humidity: £¼95% RH£¨no condensation£©Working altitude:0~5000m.Resist max. wind speed: ¡Ü 15m/ s | | 60mm¡¢40mm |
|
