| Motor quantity | 6 motors | | Alignment method | Precise core alignment,
Cladding alignment, Manual alignment | | Applicable fibers | Any common optical fibers, rubber-insulated fibers and jumpers that meet
requirements of ITU-TG.651~653, ITU-TG.655 and ITU-TG.657. | | Optical fiber diameter | Cladding: 80~150¦Ìm, coating layer: 0.1~3mm | | Cleave length | 5~16mm (coated optical fiber diameter ¡Ü 250¦Ìm)
10mm (coated optical fiber diameter: 0.25~3mm) | | Splice loss(typical) | 0.02dB(SMF); 0.01dB(MMF); 0.04dB(DSF); 0.04dB(NZDSF) | | Return loss | Better than 60dB | | Splicing time (typical) | 7s (Fast mode) | | Heating time (typical) | Less than 18s | | Port | USB / SD | | Dimensions | 120mm(W)¡Á130mm(H)¡Á154mm(D)(without rubber anti-vibration pad) |

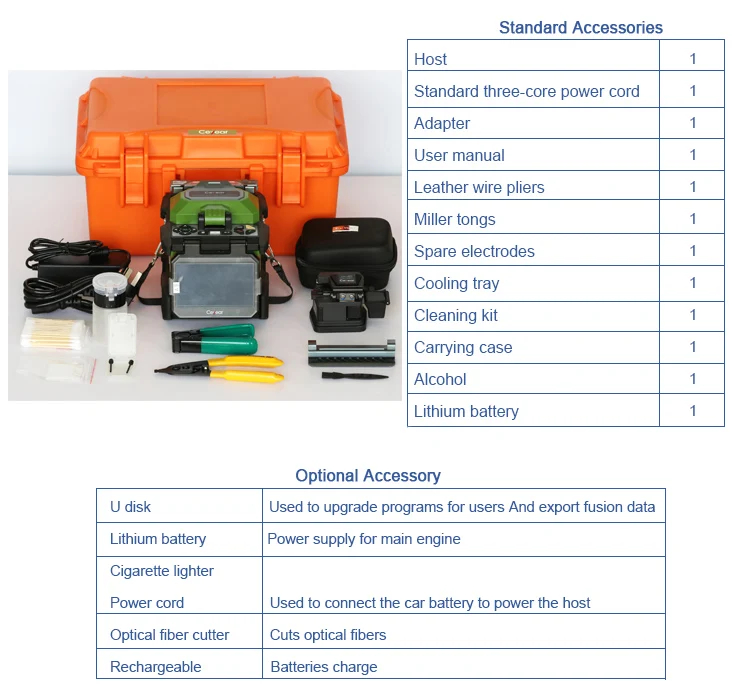

Product Overview
6481 Series Optical Fiber Fusion Splicer is small size optical fiber fusions splicer,
mainly used for fusion and protection of common communications fibers. The rich
functionality and ultra-low splice loss make the splicer adaptive to fiber splicing in various
environments. It is featured with small size, light weight, high reliability, and greater
environmental adaptability, dust-resistant, water-resistant and shock-resistant. Multiple fusion
modes and heating modes are available to meet diversified customers¡¯ demands. Fiber loading becomes

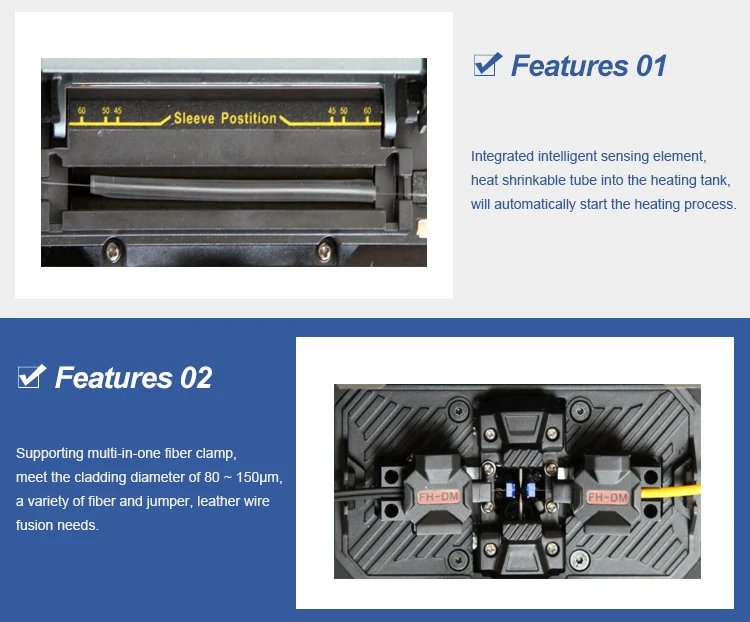

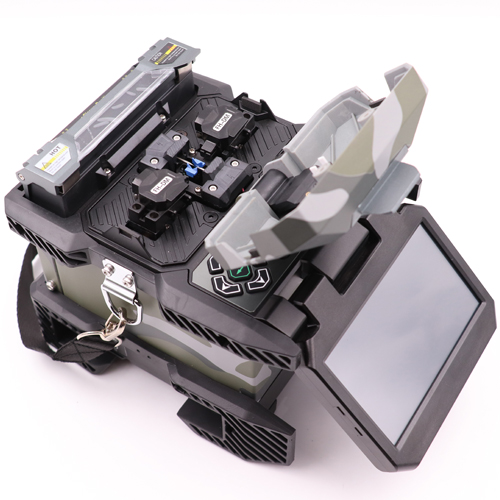

more convenient and accurate thanks to the ceramic V-groove of high precision, which is easy for
clean and maintenance. The splicer is capable of dual-directional fusion. The monitor is a

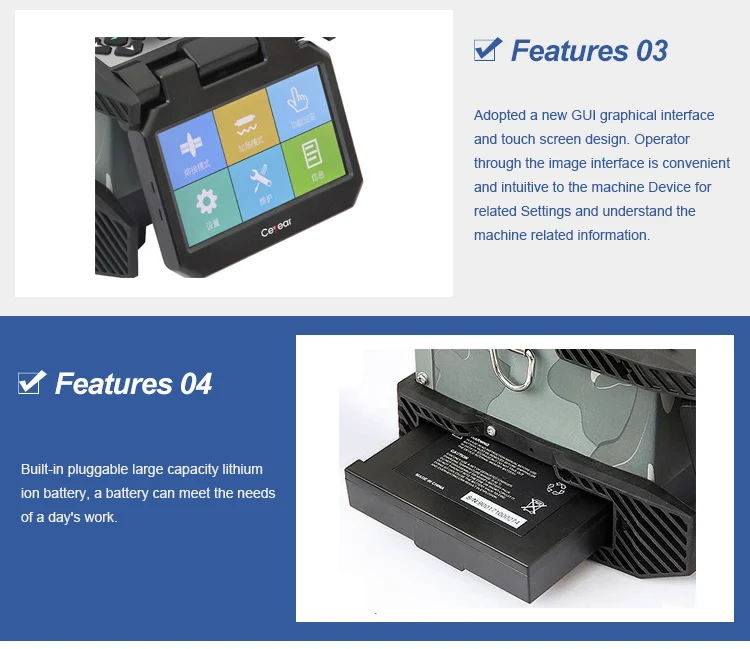

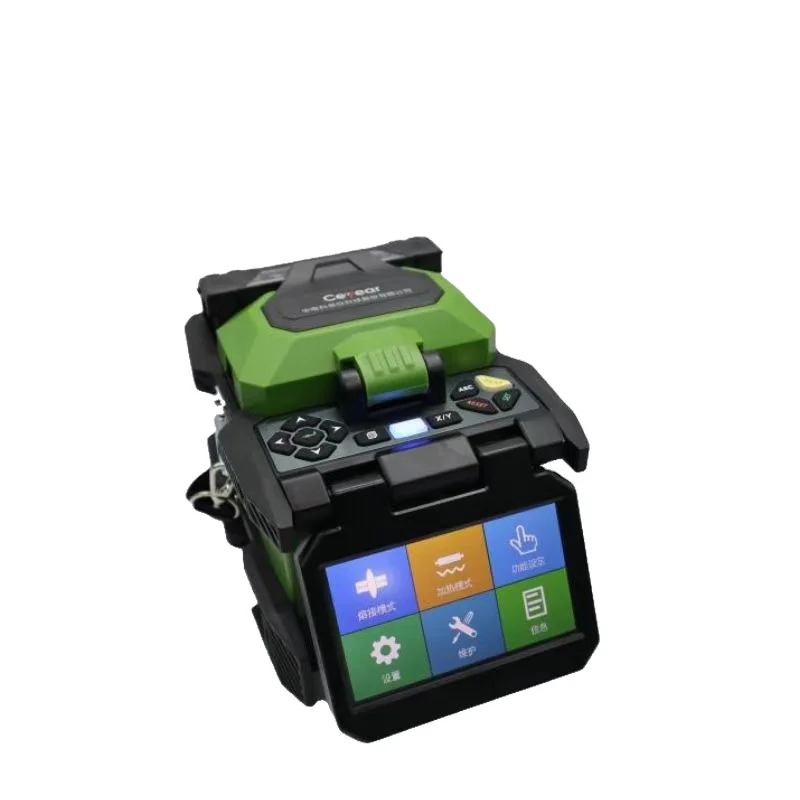

touch screen delivers fresh designed graphical interfaces, which are simple for operation. The
modular pluggable lithium-ion battery of large-capacity ensures long-time field operations.
The auto environment compensation system greatly improves adaptability of the splicer to
hostile environments, so that low-loss splice can be remained consistent in various
environments. Main Characteristics
Small size, light weight
7s fast splicing, 18s highly efficient heating
700/320 times image magnification, 5mm fusing for ultra-short cleave length
300 groups of splice modes, 100 groups of heating modes, 10000 groups of fusion
records /64 images storage
Ceramic presser foot, ceramic V-groove, all-in-one fixture
Dual-directional fusing, auto fusing, intelligent heat shrink
USB and SD card interface, auto update of U disk
Built-in modular lithium-ion battery, at least 220 counts of splicing and heating cycles
GUI (graphical user interface) and touch screen, convenient for operation

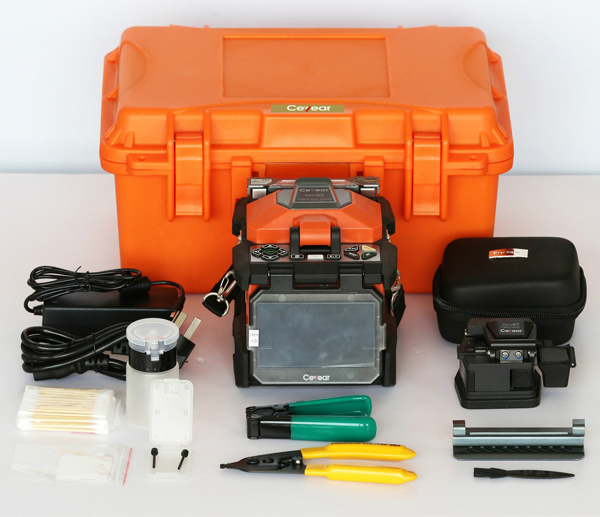

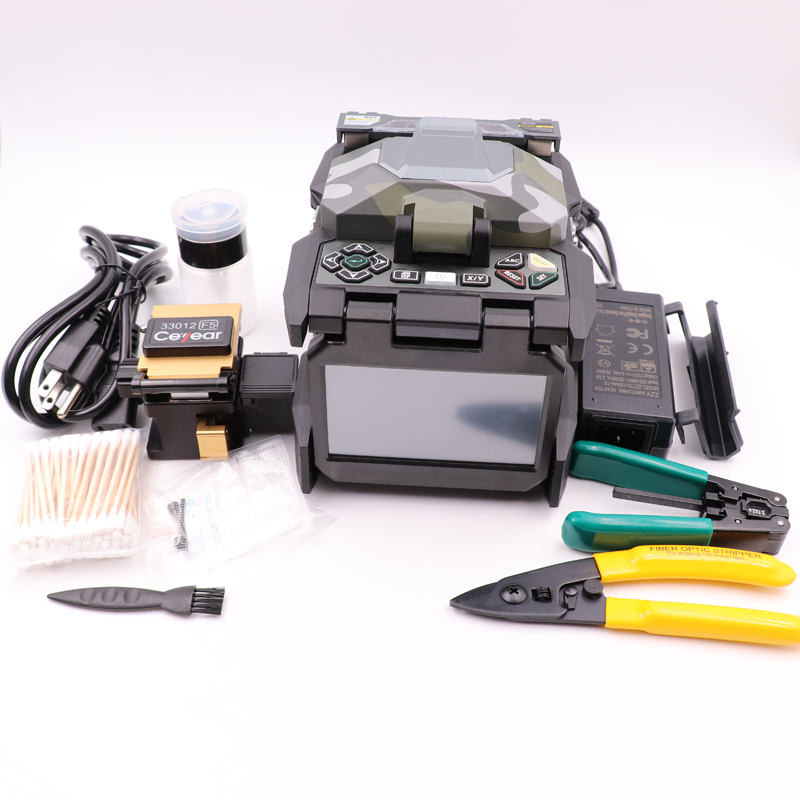

Dust-resistant, water-resistant, shock-resistant, greater environment adaptability 6481 Ceyear 4 Motors Optical Fiber Fusion Splicer 6481 series fiber fusion machine is mainly used for the connection and protection of all kinds of communication fiber and cable and erbium-doped fiber.
Its powerful function and ultra-low fusion loss make it completely suitable for optical fiber connection applications in various environments.
¡ñ7s fast welding, 15s efficient heating Mingle
¡ñ5mm ultra-short cutting length optical fiber Costing ¡ñChipped ceramic pressor foot, ceramic V-groove, multi-in-one fixture
¡ñDouble - way fusion, automatic fusion, intelligent heat shrinkage
¡ñThe USB and SD card interface automatically upgrades software on the USB flash drive
¡ñBuy a built-in modular lithium battery that fuses and heats up at least 220 times
¡ñProtective of dust, waterproof, anti - fall, environmental adaptability Product Model | 6481A | 6481B | Number of motors | six motors | four motors | Alignment mode | Precision core, cladding, manual | cladding, manual | Applicable optical fibers | Conform to the common optical fibers, skins and jumpers specified in ITU-T G.651-653, G.655 and G.657 | Fiber diameter coating | 80 ~ 150¦Ìm, coating: 0.1 ~ 3mm | Welding loss (typical value) | 0.02dB (SMF); 0.01dB (MMF);
