Product DescriptionProduct Overview

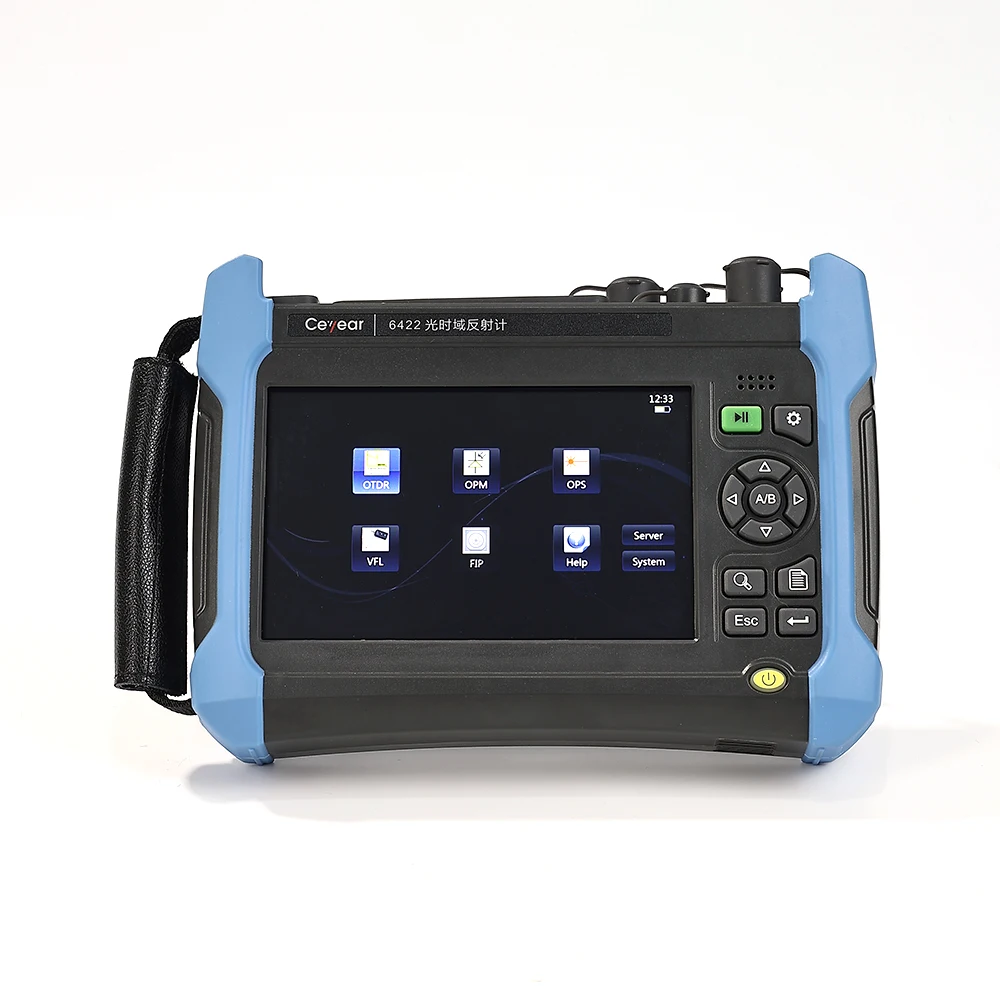

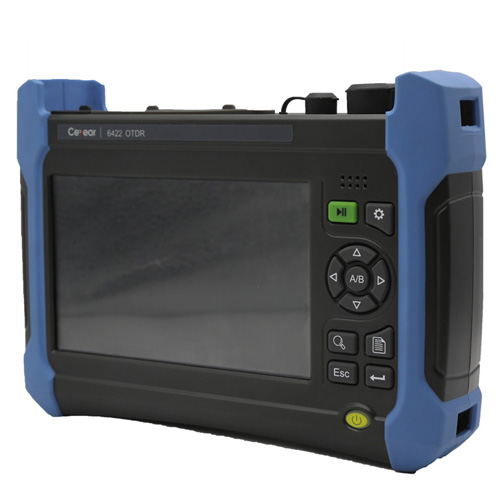

6422 Optical Time Domain Reflectometer has single mode 1310nm, 1550nm, 1490nm, 1625nm, 1650nm, multimode 850nm, 1300nm and customized special wavelength testing capabilities, single wavelength, multiwavelength, on-line testing and other modules, the maximum dynamic range of 46dB, can be used for trunk long-distance multibranch communication network testing; minimum event blind zone of 0.8m, the near end of the connection can be clearly distinguished; maximum 2.5cm sampling resolution, can accurately locate the event point. With a maximum dynamic range of 46dB, it can be used for long-distance multi-branch communication network testing of trunk lines; a minimum event blind zone of 0.8m, the near-end connection can be clearly distinguished; and a maximum sampling resolution of 2.5cm, it can accurately locate the event point. In addition, it provides a variety of convenient options such as stabilized light source, optical power meter, visual red light source, fiber end-face inspector and so on. Maximum dynamic range | See "6422 OTDR Standard Module Specifications" for details. | Ranging Accuracy (m) | ¡À (0.75 + sampling interval + 0.0025% x distance) (excluding refractive index placement error) | Resolution£¨m£© | 0.025¡¢0.05¡¢0.1¡¢0.2¡¢0.5¡¢1¡¢2¡¢4¡¢8¡¢16¡¢32 | Distance | 0.4, 0.8, 1.6, 3.2, 6.4, 16, 32, 64, 128, 256, 512 km (single mode);
0.4, 0.8, 1.6, 3.2, 6.4, 16, 32 km (850 nm multi mode) | Pulse | 3¡¢5¡¢10¡¢30¡¢80¡¢160¡¢320¡¢640¡¢1280¡¢5120¡¢10240¡¢20480ns (single mode)

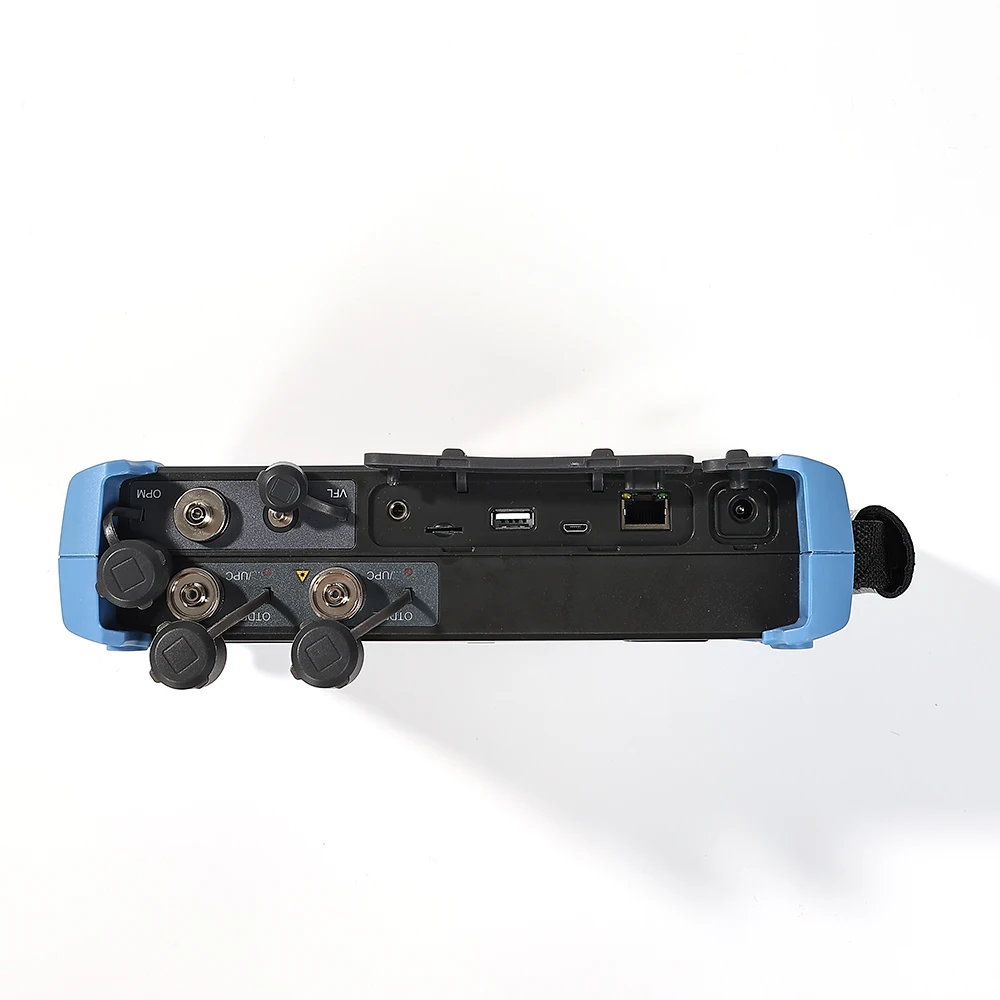

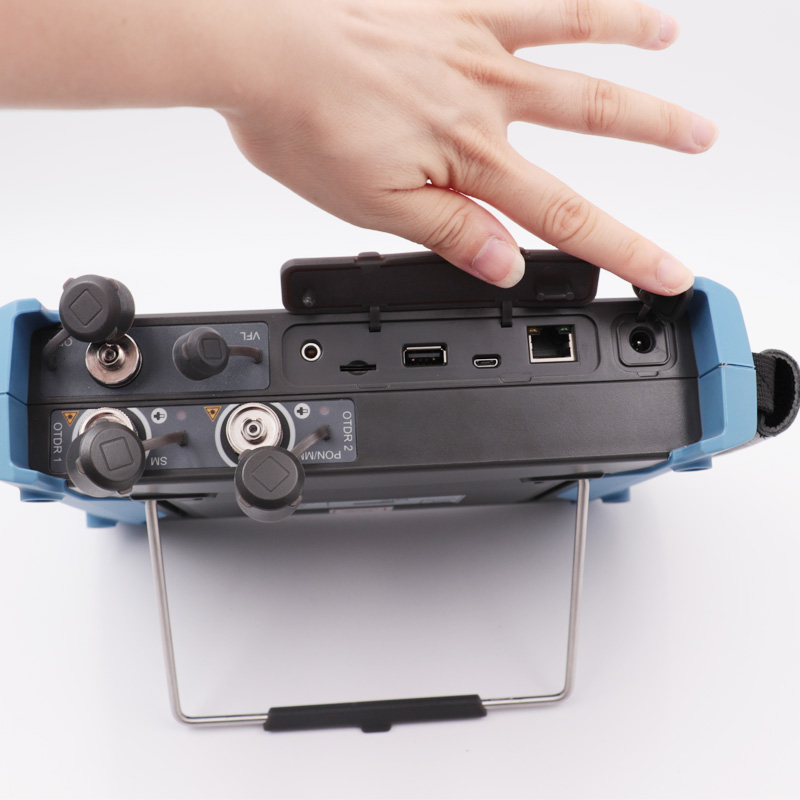

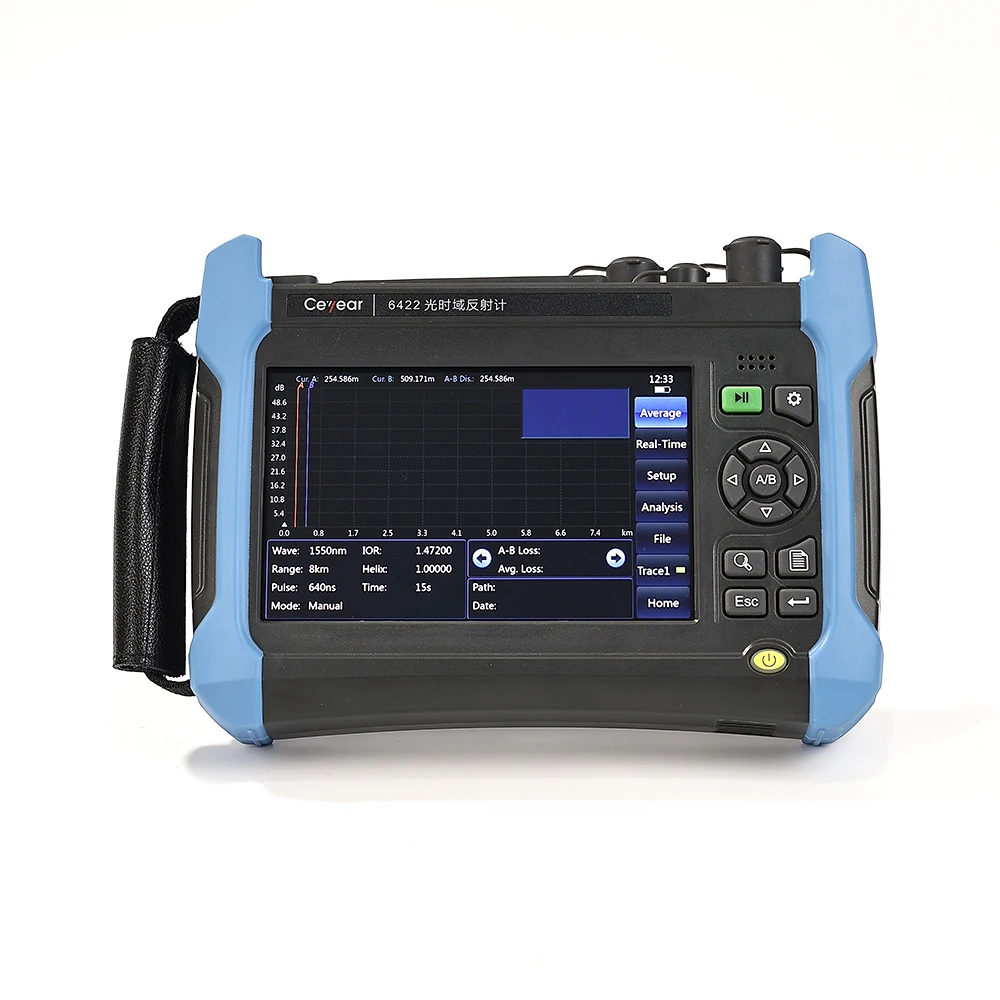

3¡¢5¡¢10¡¢30¡¢80¡¢160¡¢320¡¢640¡¢1280ns (850 nm multi mode) | Maximum Sampling Points | 256k | Linearity | 0.03dB/dB | Loss Resolution | 0.001dB | Refractive Index Setting Range | 1.00000¡«1.99999(stepping 0.00001) | Distance Unit | Kilometer, meter, thousand of feet, feet | Display | 800 x 480, 7-inch TFT color LCD (standard capacitive touchscreen) | optical output interface | FC/UPC (standard, optional LC/UPC, SC/UPC, ST/UPC, FC/APC) | interface language | Chinese, English (contact us for other language support) | External Interface | USB, Micro-USB, 10M/100M Ethernet, Micro SD |
Power
| AC/DC adapter: AC100V~240V, 50/60Hz, 1.5A DC: 17V¡À3V (2A)
Internal lithium battery: 11.1V, battery operating time: 8 hours | Maximum power consumption | 10W (non-charging) | Dimensions | W¡ÁH¡ÁD=252mm¡Á180mm¡Á55mm | Weight | Approx. 1.8kg |
Environmental Adaptability
| Operating temperature: -10¡æ¡«+50¡æ(Battery charging: 5¡æ¡«40¡æ)
Storage temperature: -40¡æ¡«+70¡æ(Battery: -20¡æ¡«60¡æ)
Relative humidity: 5%¡«95%, no condensation |
VFL£¨optional£© Operating wavelength: 650nm¡À20nm Output power: 2mW (typical) Operating mode: CW, 1Hz, 2Hz
meter£¨optional£© Wavelength range: 850nm¡«1650nm Power range: -60dBm¡«+3dBm Uncertainty: ¡À5% (-25dBm, CW)
Stabilized light source£¨optional£© Working wavelength: same as OTDR working wavelength Output power: ¡Ý-5dBm Working mode: CW, 270Hz, 1kHz, 2kHz Fiber
optic endface inspector (optional)
WiFi Module (optional)
Through the WiFi module, the interconnection between the cell phone
client and OTDR is completed, and the cell phone APP is used to realize remote control and receive the test results back. Module No. |
Working Wavelength
|
Dynamic
Range1(dB)
|
Event Blind
Zone2£¨m£©
| Attenuation Blind Zone3
£¨m£© | Single-wavelength modules |
6422¨C1105
|
single mode 1625nm (Built-in filter)
|
36
| 1.5 | 4.5 |
6422¨C1106
|
single mode 1650nm (Built-in filter)
|
36
| 1.5 | 4.5 |
6422¨C1201
|
Multi mode
850nm
|
24
| 1.5 | 8 |
6422¨C1202
|
Multi mode
1300nm
|
36
| 1.5 | 8 | |
6422¨C2101
|
single mode 1310/1550nm
|
37/35
|
1.5
|
8
|
6422¨C2102
|
single mode 1310/1550nm
|
42/40
| 0.8 | 4.5 |
6422¨C2103
|
single mode 1310/1550nm
|
45/ 42
| 0.8 | 4.5 |
6422¨C2105
|
single mode 1550/1625nm
(Built-in filter)
|
36/36
| 1.5 | 8 |
6422¨C2107
|
single mode 1550 /1650nm
(Built-in filter)
|
36/36
| 1.5 | 8 |
6422¨C2109
|
single mode 1310/1550nm
|
46/46
|
0.8
|
4.5
|
6422-2108
|
single mode 1310/1550nm
|
30/28
|
1.5
|
8
|
6422¨C2201
|
Multi mode
850nm/1300nm
|
26/34
|
1.5
|
8
| |
6422¨C3101
|
single mode 1310/1490/1550nm
|
37/35/35
| 1.5 | 8 |
6422¨C3102
|
single mode 1310/1550/1625nm
(Filter, Dual Optical Ports)
|
37/35/35
| 1.5 | 8 |
6422¨C3103
|
single mode 1310/1550/1625nm
(Filter, Single Optical Port)
|
42/40/40
| 0.8 | 4.5 |
6422¨C3104
|
single mode 1310/1550/1650nm
(Filter, Single Optical Port)
|
42/40/40
| 0.8 | 4.5 |
6422¨C3105
|
single mode 1310/1550/1650nm
(Filter, Dual Optical Ports)
|
37/35/35
| 1.5 | 8 |
6422¨C3106
|
single mode 1310/1550/1625nm
(Filter, Single Optical Port)
|
30/28/28
| 1.5 | 8 | |
6422¨C4101
|
1310/1490/1550/1625nm
(Filter, Dual Optical Ports)
|
37/35/35/35
| 1.5 | 4.5 |
6422¨C4105
|
1310/1490/1550/1650nm
(Filter, Dual Optical Ports)
|
37/35/35/35
| 1.5 | 4.5 |
6422¨C4001
|
single mode 1310/1550nm
Multi mode 850/1300nm
|
37/35/26/34
| 1.5 | 8 |
6422¨C4002
|
single mode 1310/1550nm
Multi mode 850/1300nm
|
30/28/24/28
| 1.5 | 8 | Note: 1. Ambient temperature 23¡æ¡À5¡æ, maximum test pulse width, averaging time > 180s, SNR=1; 2. Range ¡Ü 1.6km, pulse width 3ns,
fiber end face reflection loss ¡Ý 40dB, typical value; 3. Range ¡Ü 1.6km, pulse width 5ns or smaller pulse, fiber end face
reflection loss ¡Ý 50dB, typical value. |
Ordering Information
Main Unit: 6422 Optical Time Domain Reflectometer

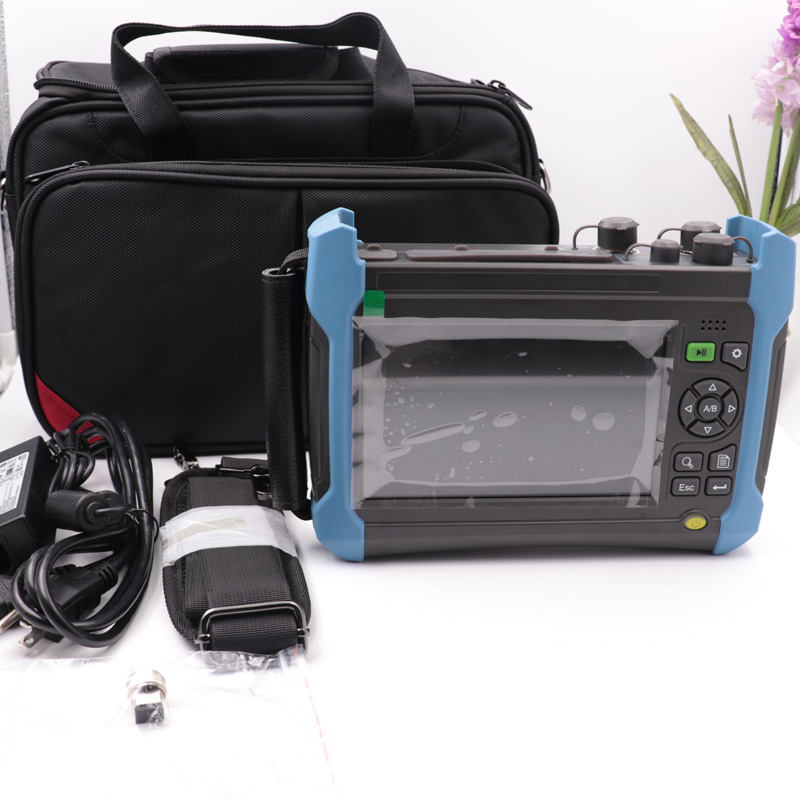

Standard Package
No. | Name | Note | | 1 | 6422 Optical Time Domain Reflectometer | Includes lithium battery | | 2 | Power Line Assembly | Input voltage 100Vac-240Vac, 50Hz-60Hz, 2.0A
Output voltage 15V¡À0.5V, output current¡Ý3A | | 3 | User Manual | | | 4 | Product Certificate | | |
5
|
Soft Bag
| | |
No. | Name | Type | 6422-001 | USB drive | Storage capacity ¡Ý 4GB | 6422-002 | SD card | Storage capacity ¡Ý 8GB | 6422-003 | USB data cable | Length ¡Ý0.5m | 6422-004 | Spare Battery Pack | 6420A Specialized Battery Pack | 6422-005 | LC adapter | | 6422-006 | SC adapter | | 6422-007 | ST adapter | | 6422-008 | visible red light fault location (VFL) | Wavelength: 650nm¡À20nm, output power¡Ý2mW | 6422-009 | optical power meter (OPM) | Wavelength range: 850nm~1650nm, Power range: -60dBm~ +3dBm | 6422-010 | stable light source (LS) | Output wavelength same as OTDR module, output power ¡Ý -5dBm |
6422-011
| Specialized Engineering Plastic Boxes | | 6422-012 | Fiber Optic Endface Tester | Magnification ¡Ý200, USB interface | 6422-013 | WiFi Module | |
|
