Fast Connector S01 SC/APC SC/UPC

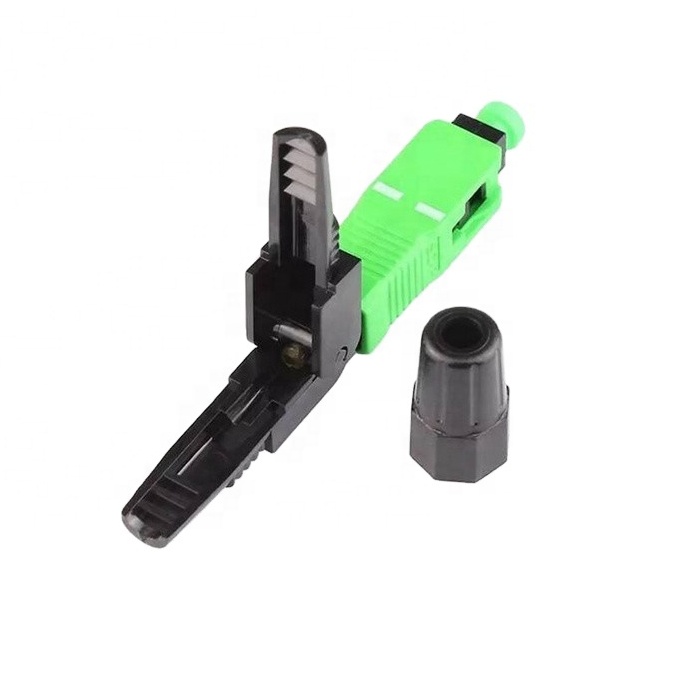

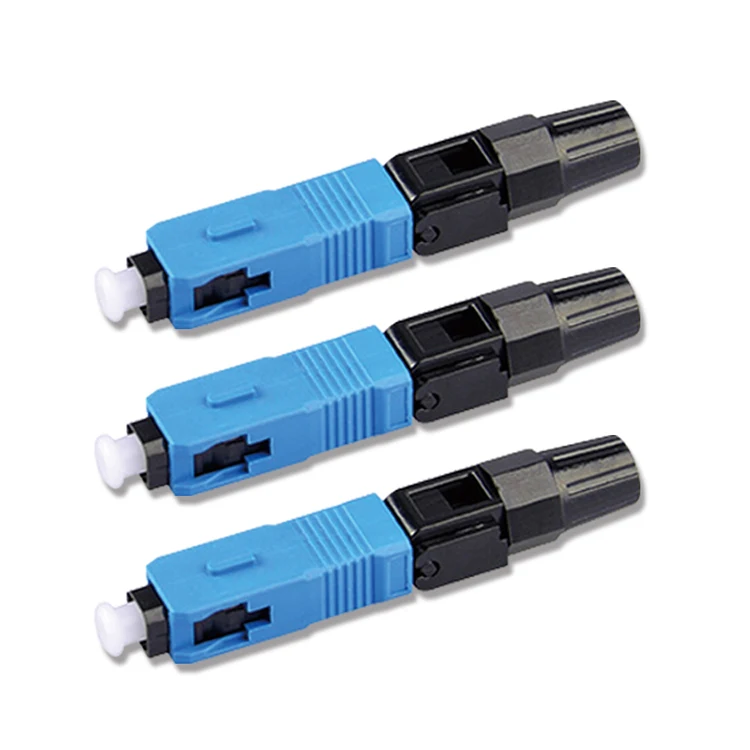

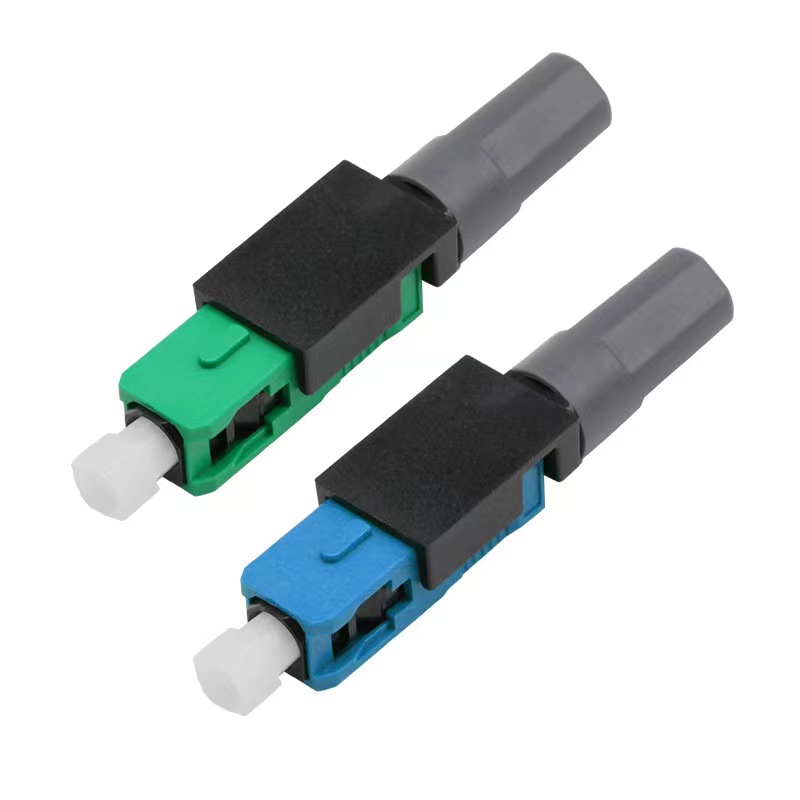

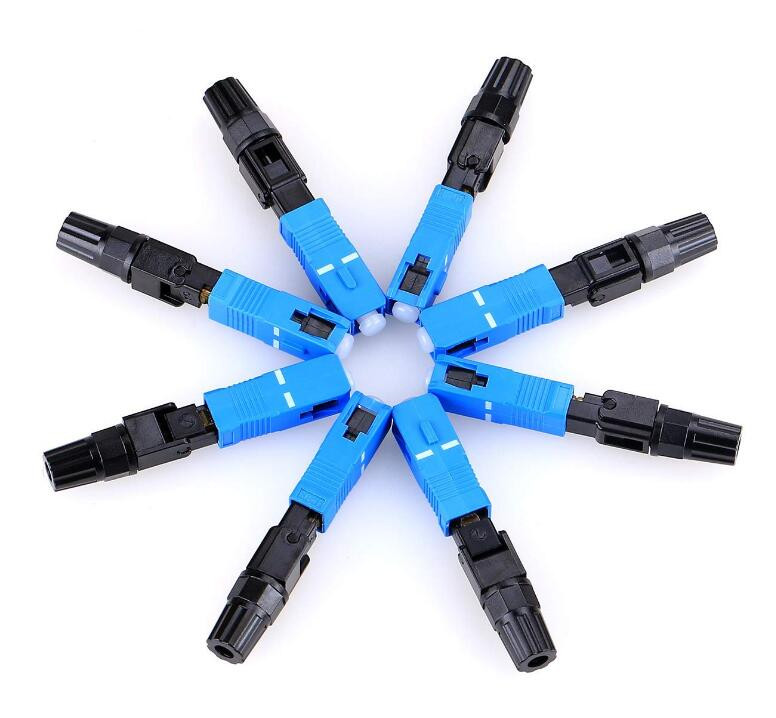

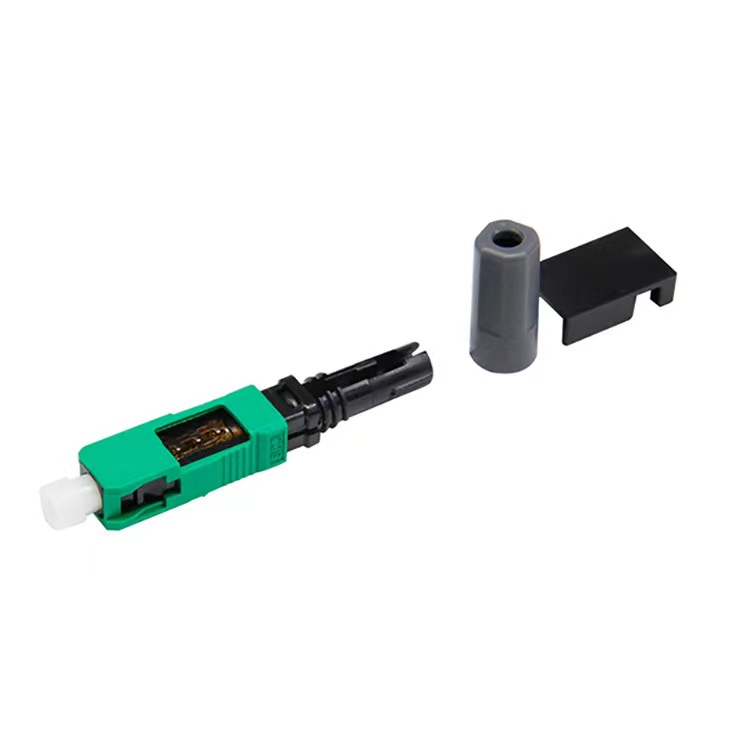

Product Name: Fast Connector S01 SC/APC SC/UPC
P/N: S01
Download Datasheet

Product Description
FIBER OPTIC FAST CONNECTOR
Model: OFC-FCA-SC
Connector: SC
Ferrule: UPC
Dimension: 50MM
Fiber Mode: SM MM
Cable O.D.:2.0*3.0MM

Simple Specification:
Intersion Loss:
UPC¡Ü0.3dB
APC ¡Ü0.3dB
Return Loss:
UPC ¡Ý45dB
APC ¡Ý50dB
Tension: ¡Ý100N
Operation Temperature: -40~+75¡æ
