Applications
- Maintenance in telecom , CATV
- Test Lab of optical fibers
- fiber routing and continuity checking in optical
networks.
- Other fiber optic measurements

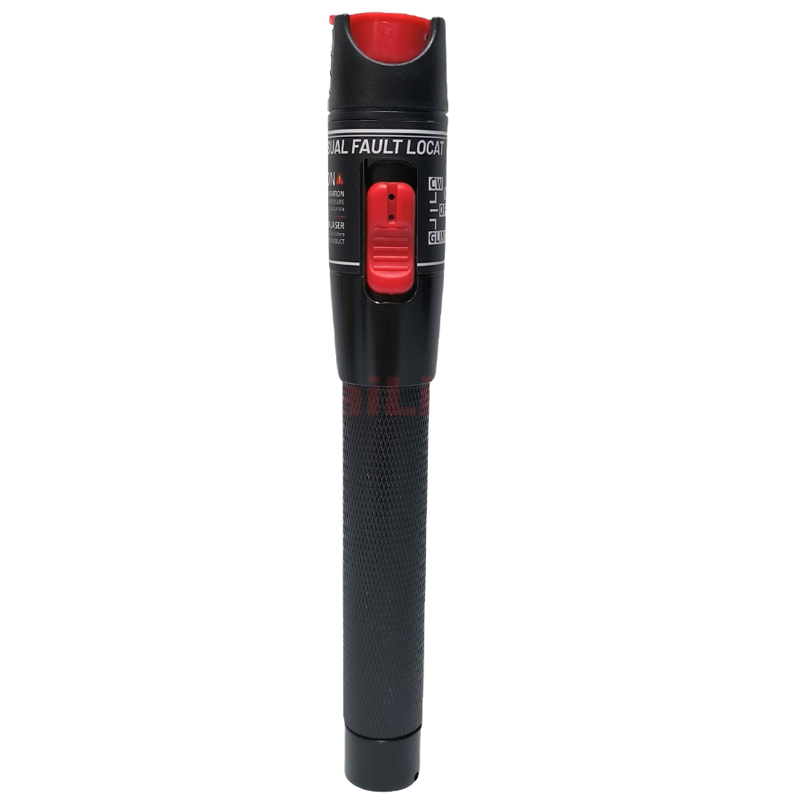

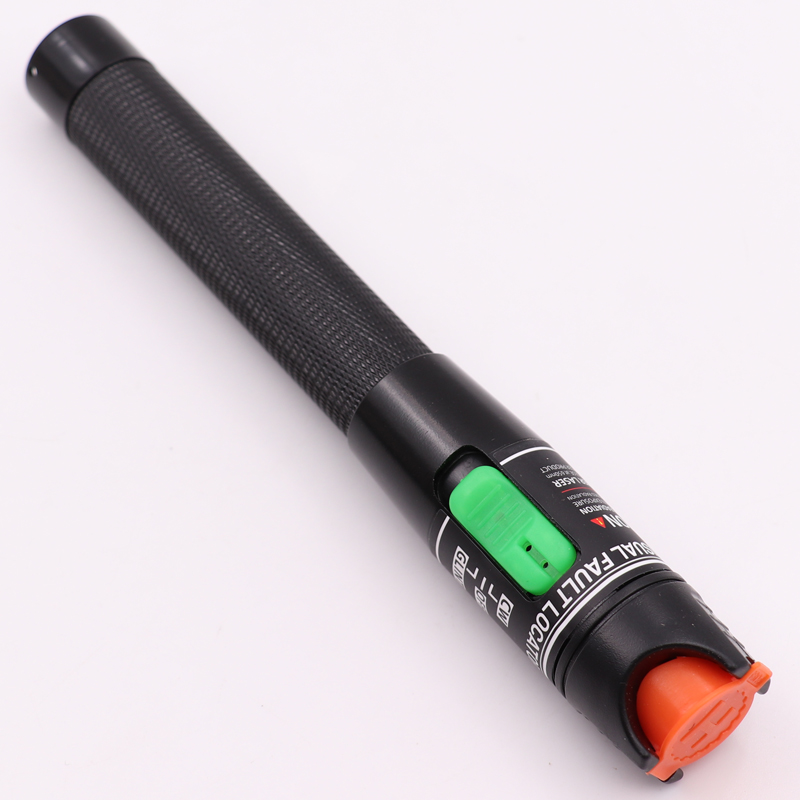

Key Features – Pen-Type Visual Fault
Locator
·
2.5mm universal connector,
·
Operates either in CW or Pulsed mode with constant output
power
·
Long battery life (up to 60 hours)
·
drop-resistand and dust-proof design of laser head
·
Laser case ground design prevents ESD damage
·
Portable and rugged
·
Easy to use
·
Meets CE standards including EMC, EMI, ROHS
Technical Specifications – -Visual Fault Locator
|
Model
|
VFL650-5S
|
|
Central wavelength
|
650nm±10nm
|
|
Emitter type
|
FP-LD （珀罗激光二极管）
|
|
Output power
|
Optional choice for
5mw, 10mw,20mw,30mw,50mw,60mw
|
|
Optical connector
|
2.5mm universal
connector, for 1.25mm connectors, FC (Male)-LC. (Female) convertor can be
provided on request
|
|
Operating model
|
Both CW and Pulse
available
|
|
Pulse frequency
|
3Hz to 9Hz
|
|
Power supply
|
2AAA alkaline
batteries
|
|
Operating
temperature
|
-20°C to 60°C
|
|
Storage temperature
|
-40°C to 85°C
|
|
Dimension
|
-FL-005 Φ13 X167
|
|
Weight
|
113g (without
battery)
|
|
